QtToggleGroup#

Compact grouped toggle buttons with exclusive and multi-select modes.

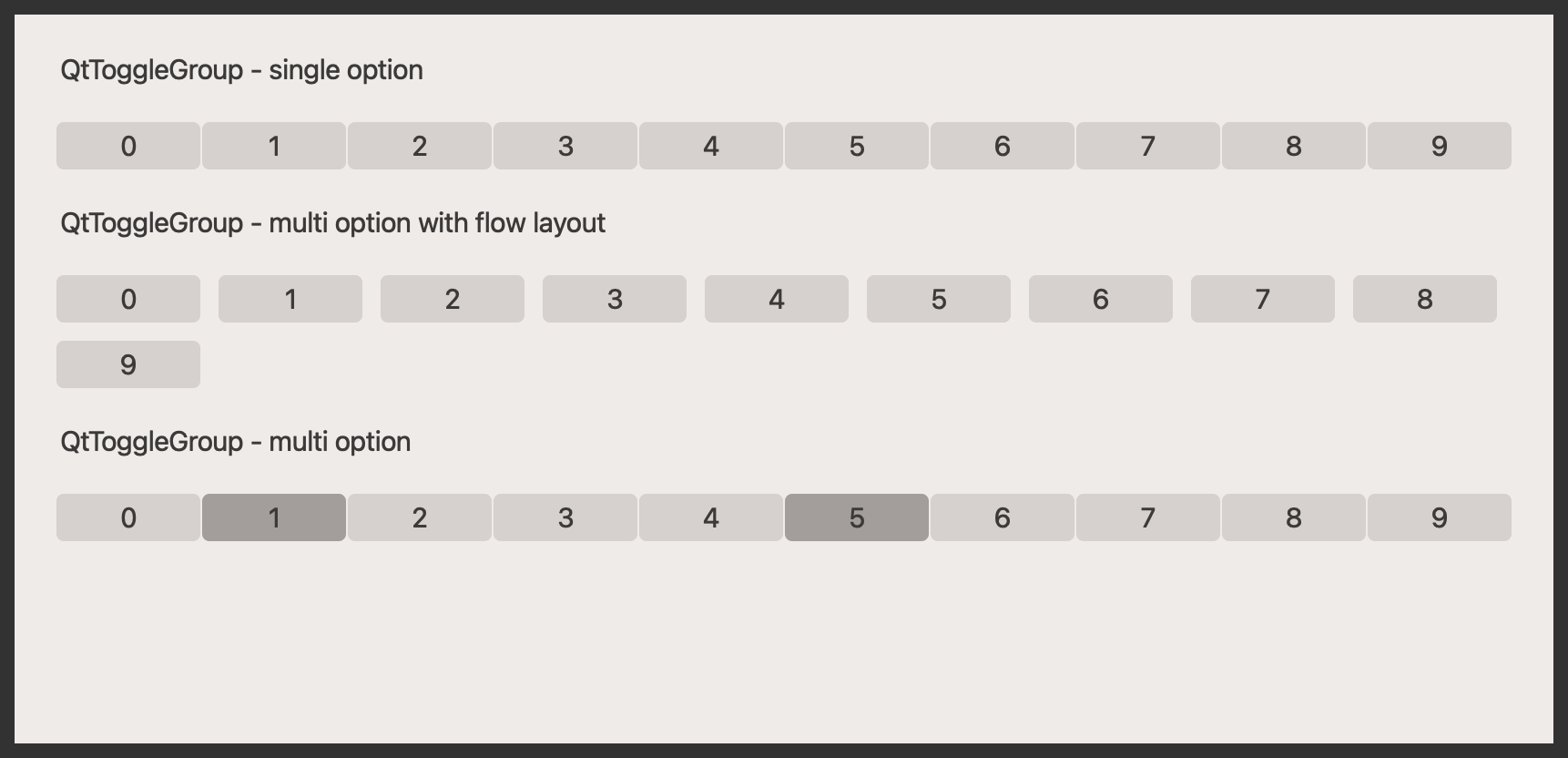

Screenshot#

qt toggle group

Example#

Source: examples/qt_toggle_group.py

"""QtActiveProgressBarButton."""

from qtpy.QtWidgets import QApplication, QLabel, QVBoxLayout, QWidget

from qtextra.config import THEMES
from qtextra.widgets.qt_toggle_group import QtToggleGroup

app = QApplication([])

widget = QWidget()
widget.setMinimumHeight(400)
THEMES.apply(widget)

layout = QVBoxLayout()
widget.setLayout(layout)

layout.addWidget(QLabel("QtToggleGroup - single option"))
layout.addWidget(QtToggleGroup(None, [str(i) for i in range(10)], exclusive=True))

layout.addWidget(QLabel("QtToggleGroup - multi option with flow layout"))
layout.addWidget(QtToggleGroup(None, [str(i) for i in range(10)], exclusive=False, orientation="flow"))

layout.addWidget(QLabel("QtToggleGroup - multi option"))
layout.addWidget(QtToggleGroup(None, [str(i) for i in range(10)], exclusive=False, value=["1", "5"]))

layout.addStretch()
widget.show()

app.exec_()

Notes#

  • Read the current selection from value and the current position from index.
  • Use from_schema when a JSON-style schema already describes the options.

API#

Qt Class#

QFrame

Signals#

evt_index_changed#

evt_changed#

Methods#

Widget for a toggle group.

buttons: list[QWidget] property #

Buttons.

checked_buttons: ty.Any property #

Button.

index: int | list[int] | None property #

Get index.

options: list[str] property #

Options.

value: str | list[str] | None property writable #

Get value.

from_schema(parent: QWidget | None, options: list[str] | None = None, value: str | list[str] | None = None, tooltip: str = '', orientation: str = 'horizontal', default: str | list[str] = '', description: str = '', items: dict[str, ty.Any] | None = None, func: OptionalCallback = None, exclusive: bool = True, multiline: bool = False, **kwargs: dict) -> QtToggleGroup classmethod #

From schema.

setValue(value: str | list[str]) -> None #

Set value (Qt style).
