QtOverlay#

Floating labels and message widgets anchored to another widget.

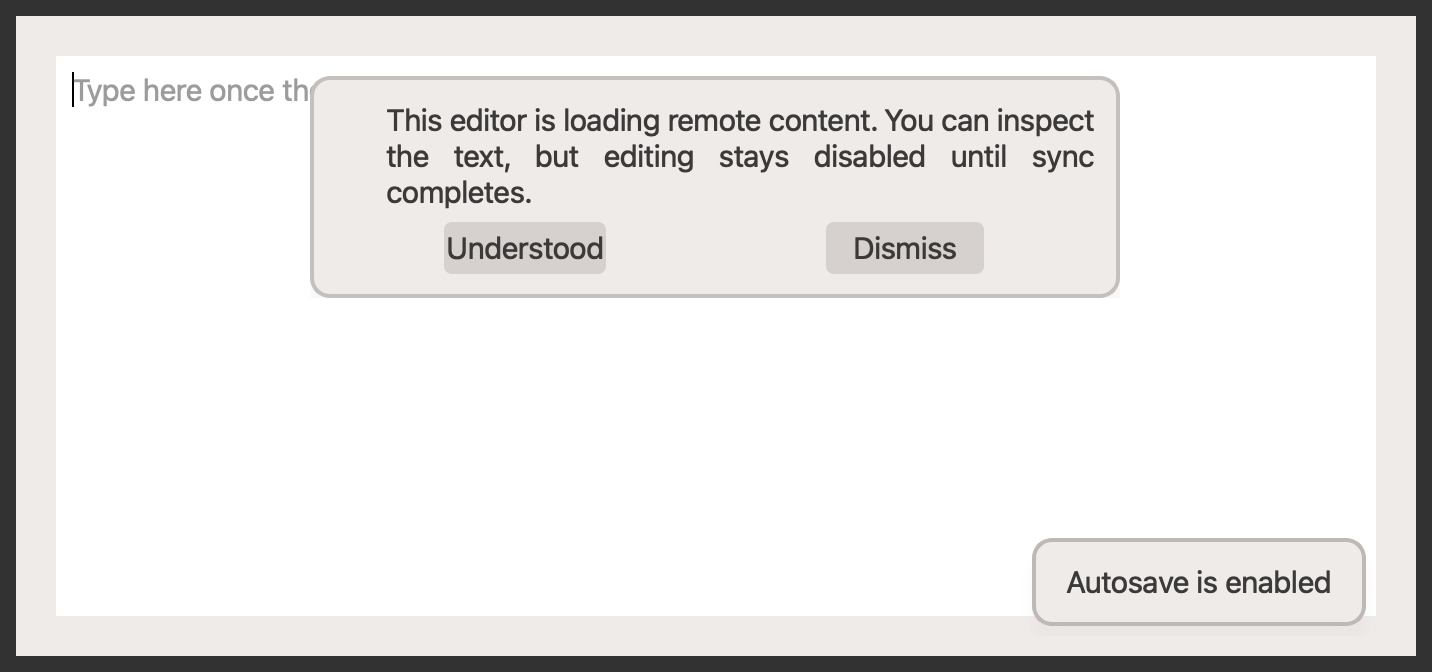

Screenshot#

qt overlay

Example#

Source: examples/qt_overlay.py

"""QtOverlay example."""

from qtpy.QtCore import Qt
from qtpy.QtWidgets import QApplication, QTextEdit, QVBoxLayout, QWidget

from qtextra.config import THEMES
from qtextra.widgets.qt_overlay import QtOverlayDismissMessage, QtOverlayLabel

app = QApplication([])

widget = QWidget()
widget.setWindowTitle("QtOverlay Example")
widget.resize(700, 320)
THEMES.apply(widget)

layout = QVBoxLayout(widget)
editor = QTextEdit()
editor.setPlaceholderText("Type here once the document is ready...")
layout.addWidget(editor)

QtOverlayLabel(
    parent=widget,
    widget=editor,
    text="Autosave is enabled",
    alignment=Qt.AlignmentFlag.AlignBottom | Qt.AlignmentFlag.AlignRight,
)

overlay = QtOverlayDismissMessage(
    parent=widget,
    widget=editor,
    icon_name="info",
    text="This editor is loading remote content. You can inspect the text, but editing stays disabled until sync completes.",
    word_wrap=True,
    dismiss_btn=True,
    ok_btn=True,
    ok_text="Understood",
)
overlay.display()

widget.show()
app.exec_()

Notes#

  • Overlays automatically follow the anchor widget as it moves, resizes, shows, or hides.

API#

Qt Class#

QWidget

Methods#

A widget positioned on top of another widget.

Y_OFFSET: int = 10 class-attribute instance-attribute #

alignment() -> Qt.AlignmentFlag #

Return the overlay alignment.

attach_to(widget: QWidget | None) -> None #

Attach the overlay to a widget.

setAlignment(alignment: Qt.AlignmentFlag) -> None #

Set overlay alignment.

set_widget(widget: QWidget | None) -> None #

Attach the overlay to a widget and track its geometry.

widget() -> QWidget | None #

Return the widget the overlay is attached to.

Qt Class#

QWidget

Methods#

Text label that sits on top of another widget.

text: str property #

Return overlay text.

set_text(text: str) -> None #

Update overlay text.

Qt Class#

QWidget

Signals#

evt_rejected#

evt_accepted#

evt_dismissed#

Methods#

Message widget that sits on top of another widget.

is_dismissed: bool property #

Return whether the message has been dismissed.

is_displayed: bool property #

Return whether the message content is currently visible.

dismiss() -> None #

Dismiss the message.

display() -> None #

Display the message.

Qt Class#

QWidget

Methods#

Overlay message preconfigured with dismiss and optional OK actions.
